The Lifesaver for Your Ricoh GR: A Perfect 3D-Printed Eyepiece Frame

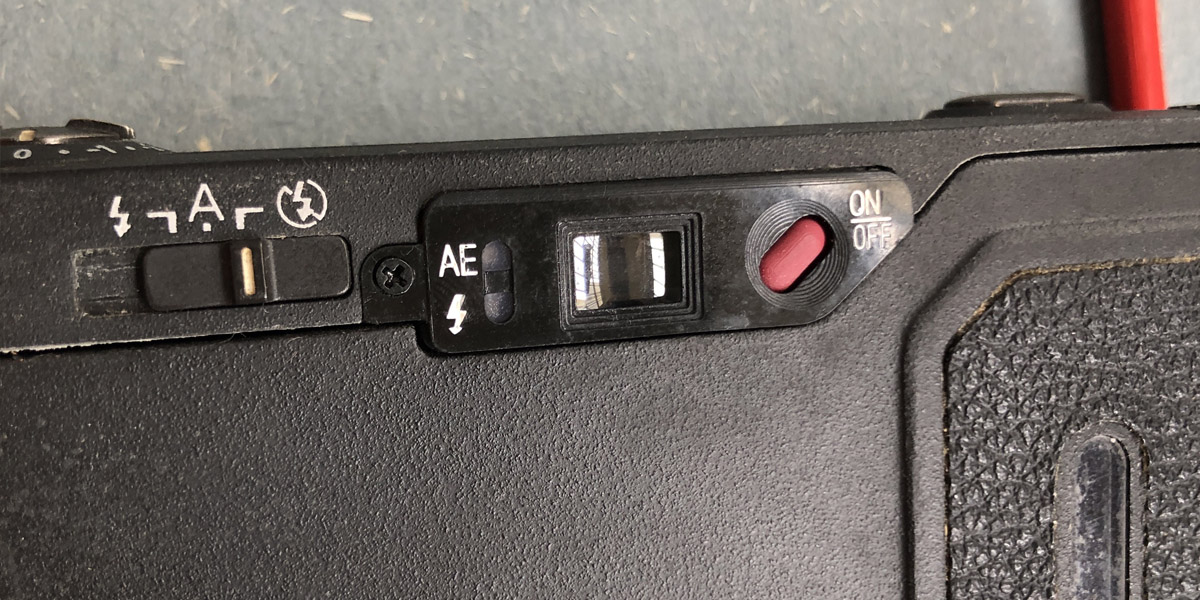

The Ricoh GR series (GR1, GR1s, GR1V) are legendary compact film cameras—tiny yet powerful. But their plastic eyepiece frames, held by a single screw and a small hook, are fragile. A single drop can crack them, leaving your beloved camera unusable.

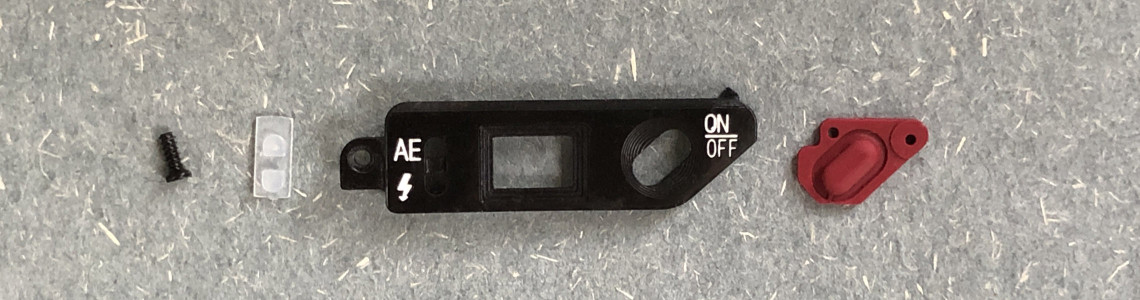

At CUFEEL.COM, we’ve engineered the ultimate solution. After 20+ days of 3D modeling, prototyping, and testing, we’ve created an eyepiece frame that fits like OEM—with a 98% match to the original design.


Why Our Eyepiece Frame Stands Out

✔ High-Toughness Engineering Resin – Durable yet flexible to withstand daily use.

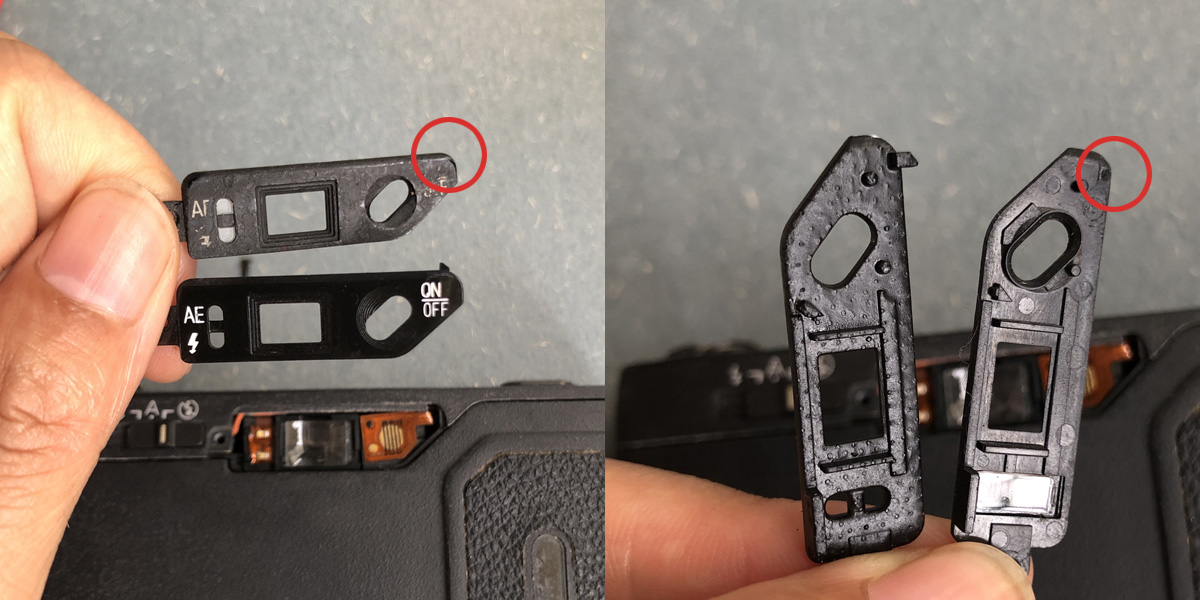

✔ Precision 3D-Printed – Laser-scanned for perfect alignment with GR series bodies.

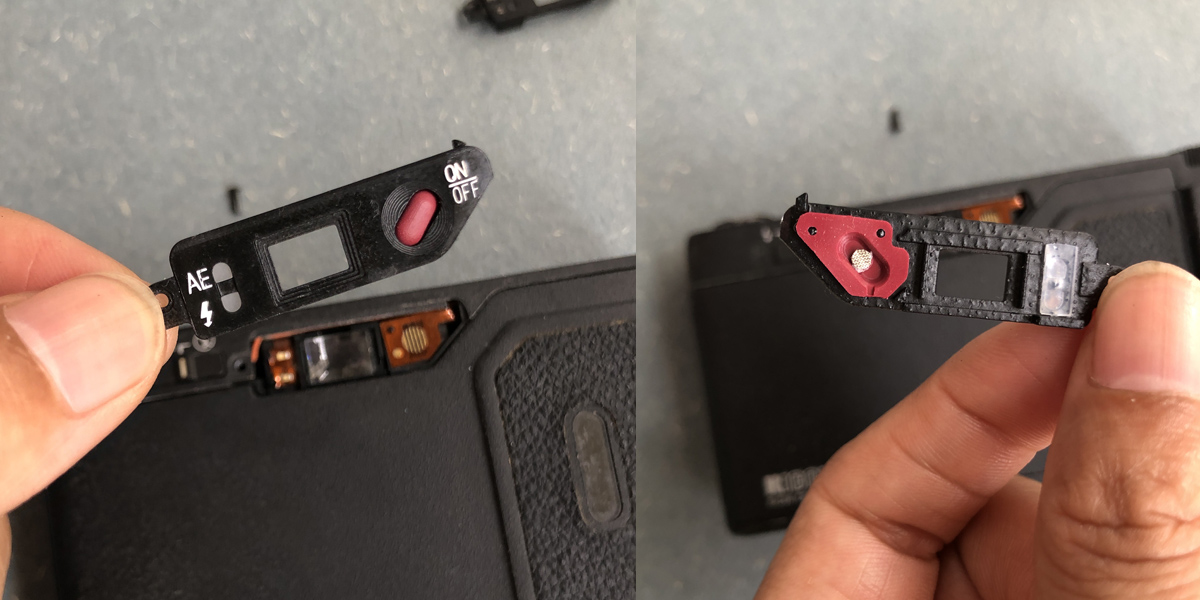

✔ Invisible Flaws – While the backside shows minor print lines (normal for 3D printing), they’re completely hidden once installed. The visible front blends seamlessly.

Easy Installation in 4 Steps

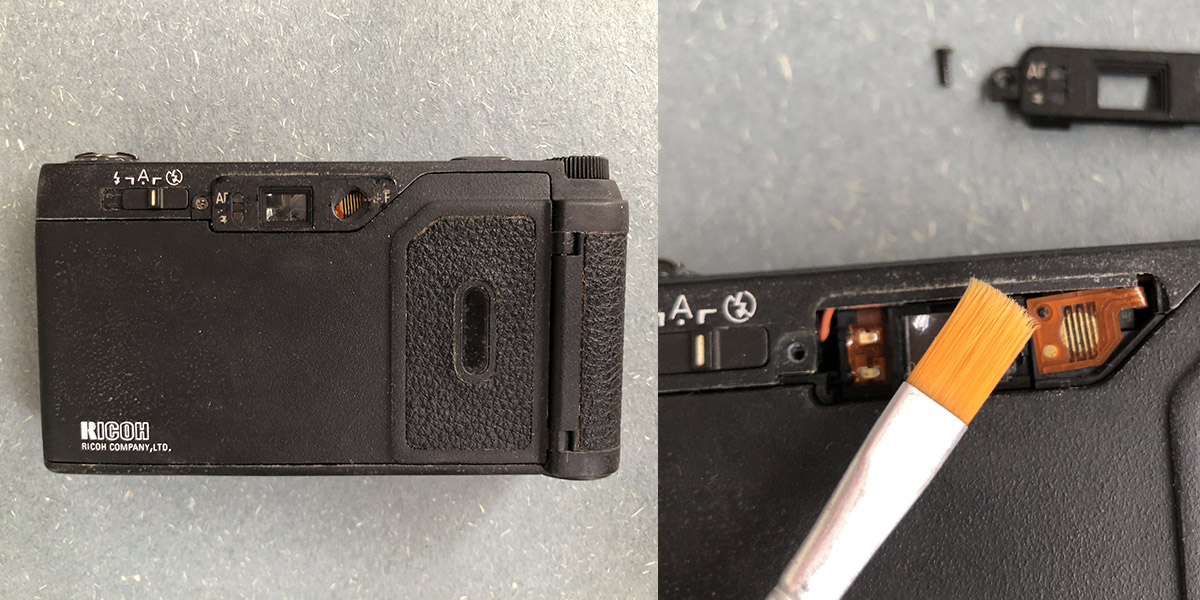

  1. Remove the broken frame and clean the area.

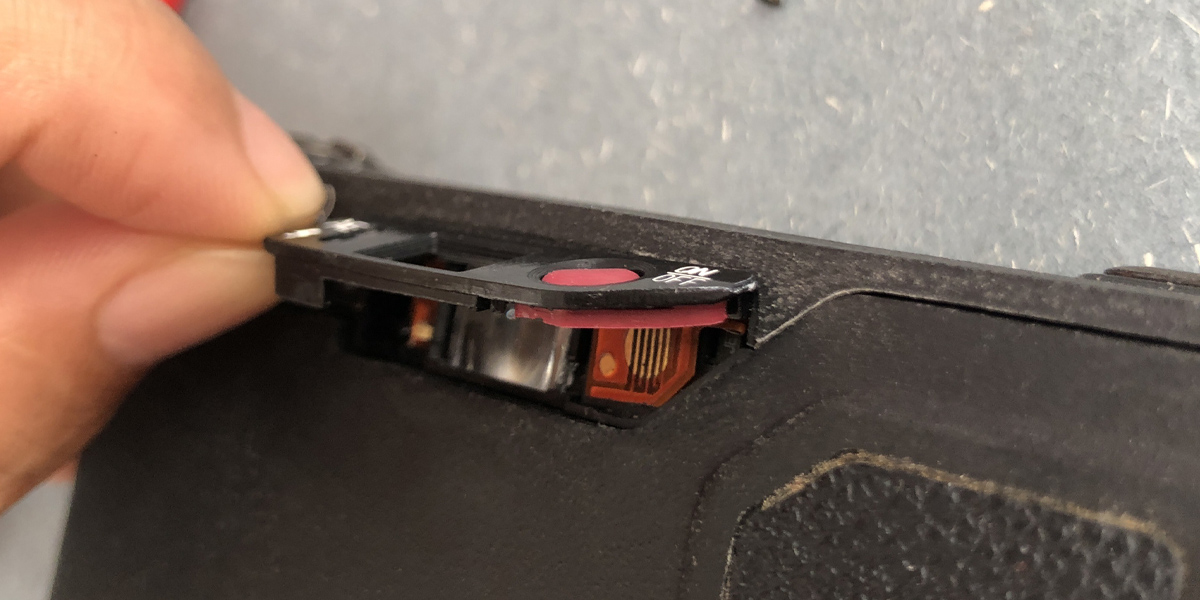

  2. Insert the right hook at an angle, then gently align it with the inner wall.


  3. Adjust the left screw hole until it matches the camera’s threading.

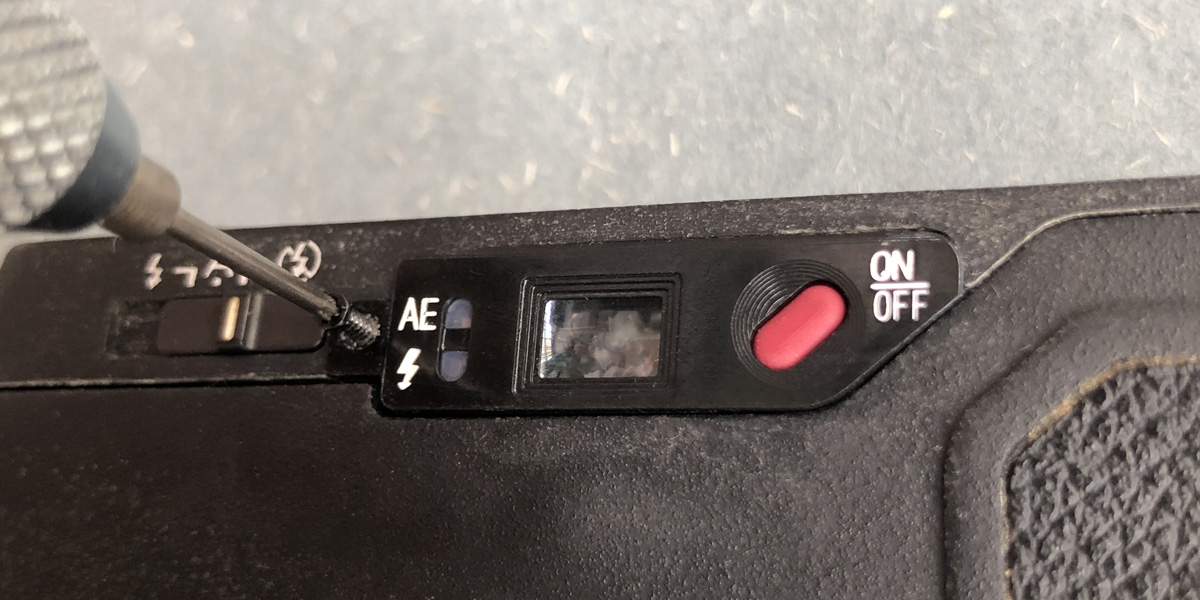

  4. Secure with a screwdriver—done!


Pro Tip: Use a JIS #00 screwdriver (not Phillips) to avoid stripping the screw.

For the Perfectionists

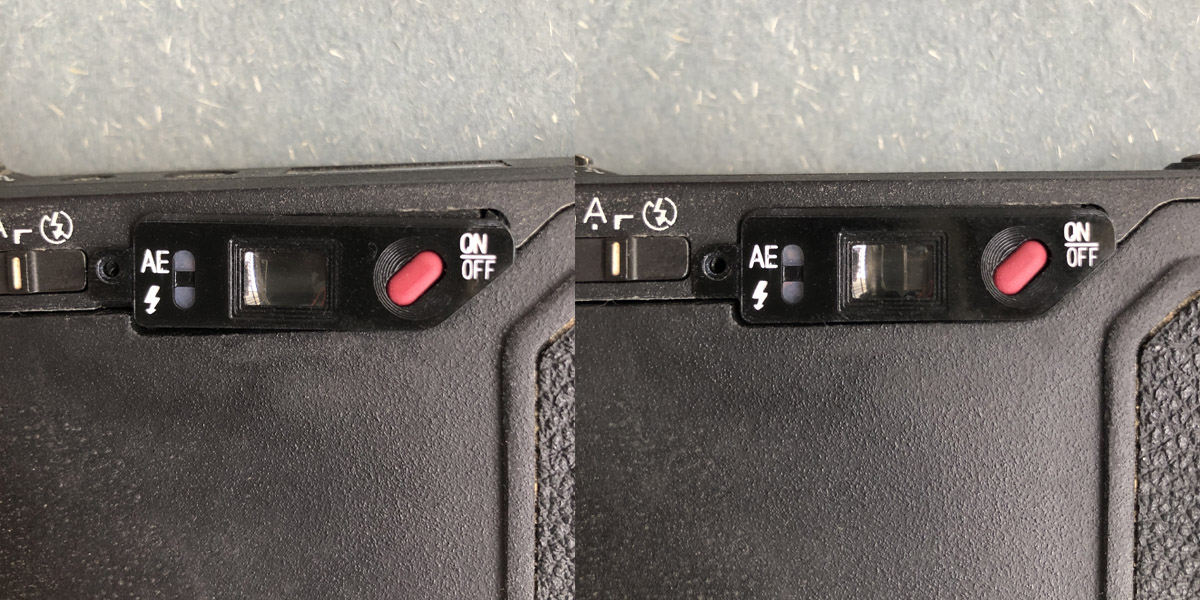

Yes, 3D-printed parts have subtle layer lines. But ask yourself: Would you rather have a flawless-but-hidden backside… or a broken camera? Once installed, only the sleek, OEM-like front is visible.
